Machine-Room-Less traction lifts
standard traction liftof loads from 350 kg (4 persons) up to 1000 kg (13 persons). The lift is produced up to ISO 9001 standards, meets the requirements of the European Lift Directive 2014/33/EU.
The lift is equipped with a belt-gearless drive unit equipped with a VVVF frequency converter. It is characterized by travelling speed of 1 m/s, very high travelling comfort, low noise emission and accurate stopping of the cabin at stop level. In case of power supply failure (blackout), a UPS unit (device of batteries – 230 V) will enable the lift to travel at nearest stop open doors opening and let the passengers leave the cabin. Moreover, the UPS unit enables the manual lift control in case of passengers emergency freeing.
The drive unit is mounted on the top of the guides and that solution enables the forces to be transmit down the shaft bottom. Thanks to it, the lift’s shaft is a lighter and much cheaper construction.

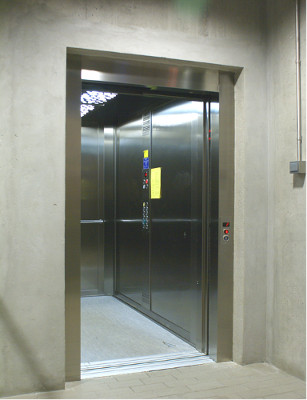

The TMC cars are modular constructions with one or two entrances. The interior can be freely organized using a broad spectrum of floors and cabin wall panels: laminated or steel ones.
The lift is used in higher buildings of 7 up to 12 stops (17-35 m).
Use: in high residential and office buildings, hotels, public buildings.
GREEN LIFT® - GLT of 630 kg load and higher are adapted for disabled persons.
